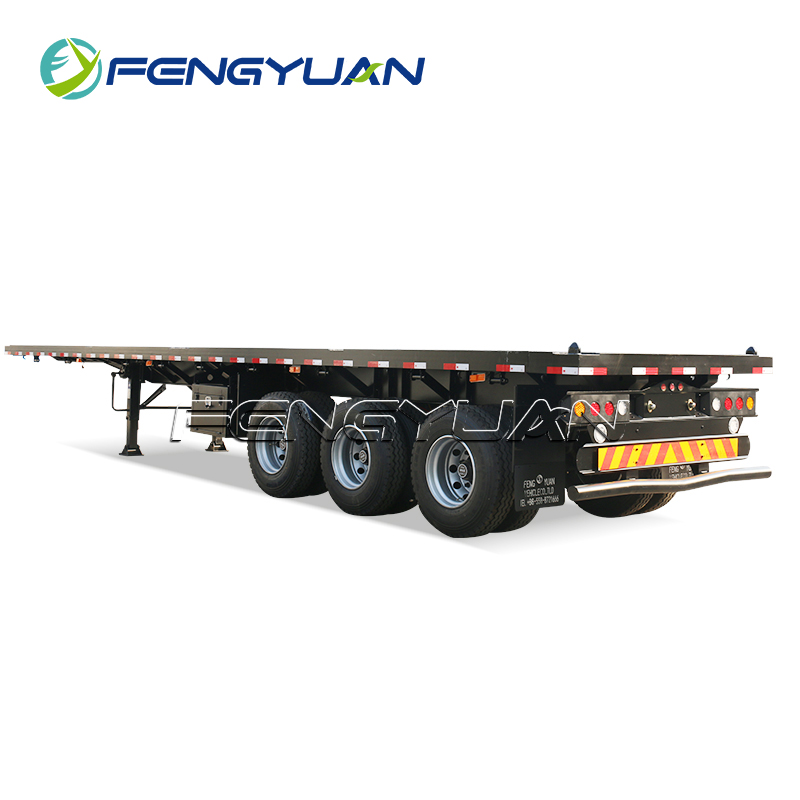

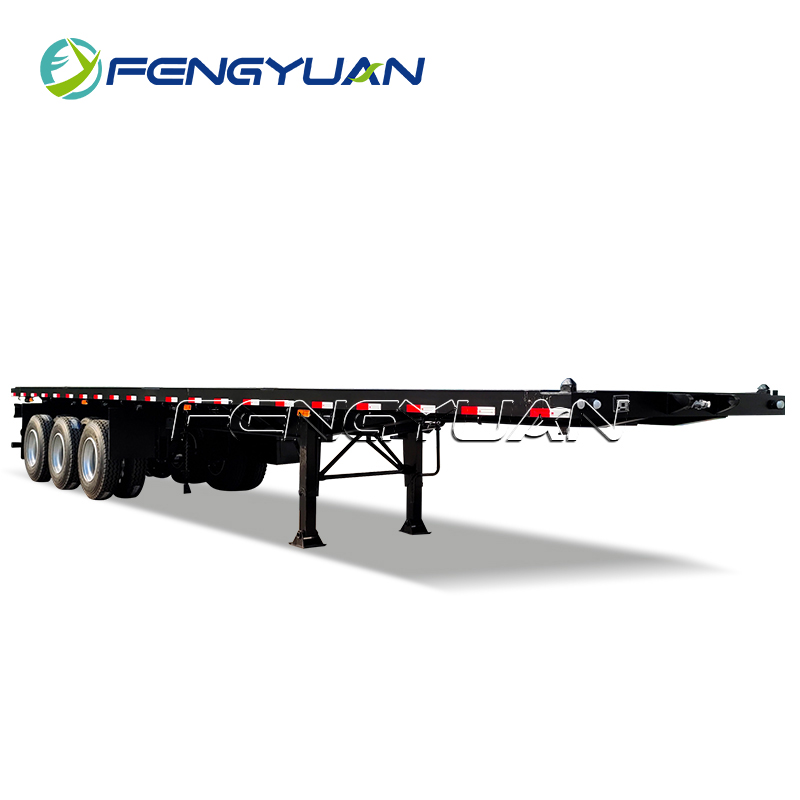

Flatbed semi-trailers can be used to transport containers, such as in ships, ports, routes, highways, transfer stations, bridges, tunnels and other logistics systems.
Order(MOQ) :
1 setPayment :
50% advance payment, balance before deliveryProduct Origin :
Bozhou, Anhui, ChinaColor :
CustomizableShipping Port :
Qingdao, ChinaLead Time :
20-30 daysWeight :
about 7.5 tonDetailed Descriptions:
1) Frame: The frame is made of high strength steel plate with high quality and low alloy, and the space frame structure is made of welding longitudinal beam and integral penetrating beam.Reasonable structure, improve the strength, stiffness, radial and other properties of the frame, with light weight, bearing capacity and other characteristics.
53 ft flatbed trailer
2) Axle: Axle adopts imported or domestic high quality axles such as BPW, FUWA, CIMC, etc., which have the advantages of large bearing capacity and long service life, etc. At the same time, the ABS system of domestic and foreign famous brands such as Haldex and WABCO can be installed to maximize the stability and safety of the vehicle.
3) Brake system: adopt safe and reliable double-circuit air pressure brake system, equipped with energy storage sub-pump, Haldex for optional choice. WABCO and other imported or domestic famous brand relay valve, to ensure good braking performance.
53 foot trailer
4) Toolbox: waterproof, large volume, removable structure toolbox
53 ft step deck trailer
flat bed utility trailer
40ft 3 axle flatbed semi trailer | |
Tare Weight | 7500 KG |
Dimension | Size could be customized |
Payload | 60 Ton |
Axle | 3 axles (12 ton) |
Suspension | Heavy Duty Mechanical Suspension |
Leaf Spring | 10 layers Leaf spring |
King Pin | 2'' / 3.5'' Bolt-in King Pin |
Landing Gear | 28 ton landing gear |
Wheel Rim | 9.0-22.5 wheel rim 13 pieces |
Tire | 12R22.5 tire with one spare tire. 13 pieces |
Braking System | Dual-line air brake system |
Color | According to customers needs |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
53 ft flatbed
