---This is our best selling product. Flatbed Container Semi Trailer dedicated to the transport of various containers, and also can be used to transport ordinary goods with its platform.
---It has sufficient strength, and mainly used in transport system, such as ships, ports, routes, highways,transit stations, bridges, tunnels, multimedia transport system.
Order(MOQ) :
1 setPayment :
50% advance payment, balance before deliveryProduct Origin :
Bozhou, Anhui, ChinaColor :
CustomizableShipping Port :
Qingdao, ChinaLead Time :
20-30 daysWeight :
about 7.5 tonFeatures of Truck Trailers / Semi Trailers:
1. Container semi trailers are mainly suitable for the MID/Long distance transportation of Standard containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton type etc.
Carrying for dry cargos, 1*40FT, 2*20FT, 1*20FT or 1*45FT etc. containers / High Quality Body/BPW, FUWA or Certificated
Chinese Axles / optional ABS brake system / JOST or Chinese brand parking leg and king pin / Air and Mechanical Suspension / Strengthen the Chassis Instructure.

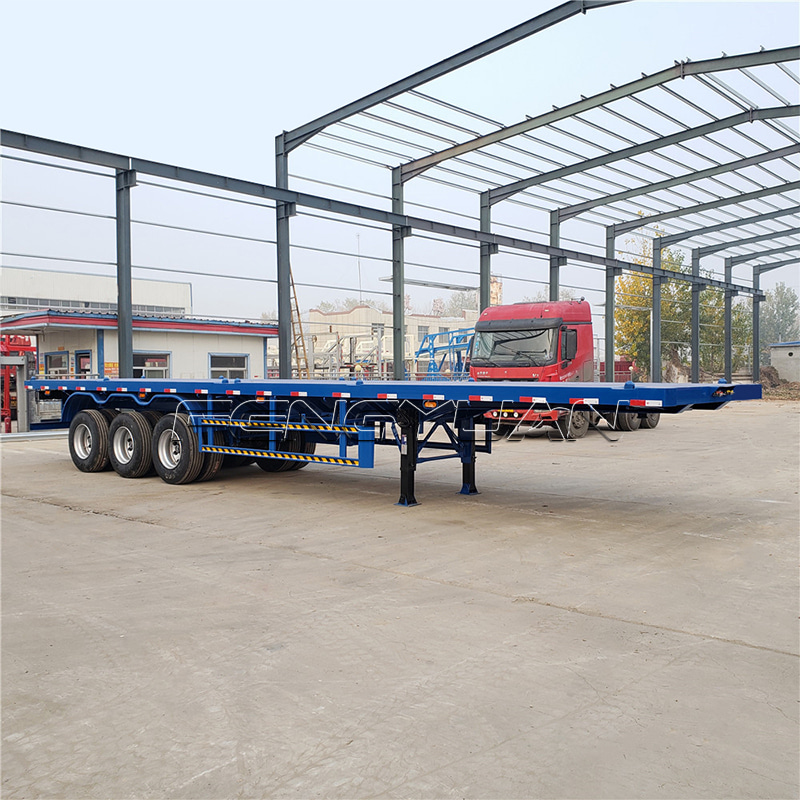

40 FT 3 Axles Flatbed semi trailer
2. The capacity is 60 tons, we can manufacture it according to your needs.
Container Semi Truck Trailers
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences
3 Axle Transport Semi Truck Trailer
4. The suspensions can be: Air suspension or mechanic suspension

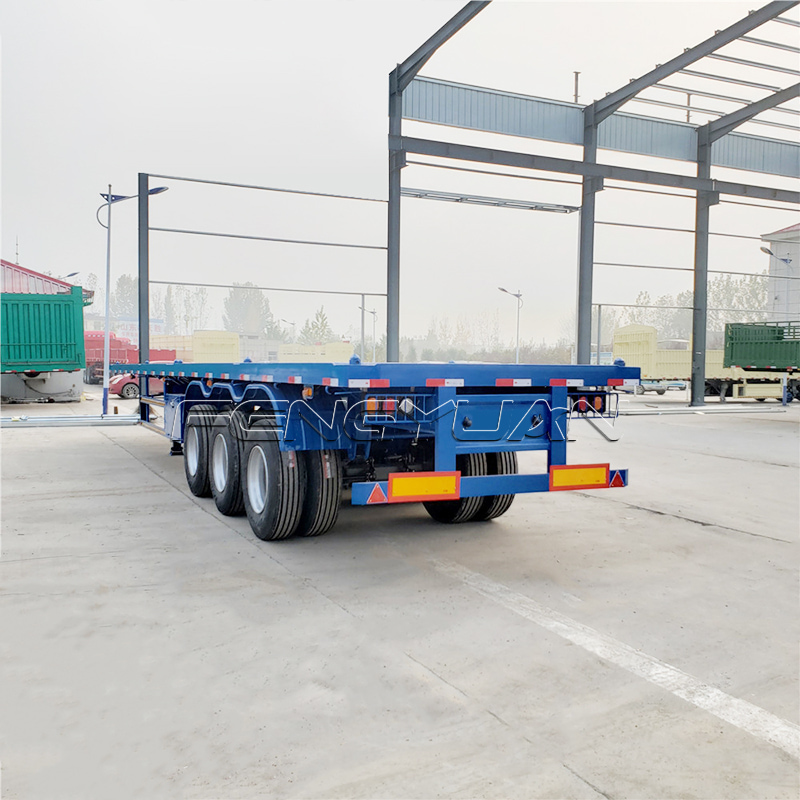

3 axles flatbed semi trailer
40ft 3 axle flatbed semi trailer | |
Tare weight | 7500 KG |
Dimension | size could be customized |
Payload | 60 Ton |
Floor | Q345B steel; 3mm pattern bottom plate |
Axle | 3 axles (12 ton) |
Suspension | Heavy Duty Mechanical Suspension |
Leaf Spring | 10 layers Leaf spring |
King Pin | 2'' / 3.5'' Bolt-in King Pin |
Landing Gear | 28 ton landing gear |
Wheel Rim | 9.0-22.5 wheel rim 13 pieces |
Tire | 12R22.5 tire with one spare tire. 13 pieces |
Braking System | Dual-line air brake system |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
3 Axles flatbed Truck Semi Trailer
Transporting Company flatbed semi trailer
